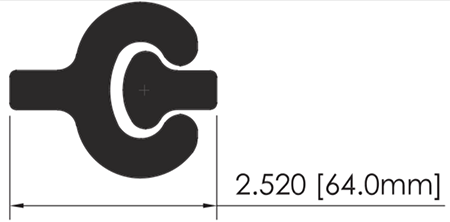

* For 60° Y-connections, offers long lasting connection, due to the fact there is no structural weld
Note: Design shown made to fit PS31 and PS27.5 (similar connectors available for other Flat Sheet Pile types, please inquire)
PS 27.5, PS 31
- steel grade
ASTM Grade 50/60,
ASTM A690 MARINER® steel
Can be produced in 6 to 10 weeks.
- Please review the proper interlocking examples that are listed.
- Thread the connector into the interlock while the sheet pile is out of the ground.
- Adjust the connector to the appropriate position.
- Tack or spot-weld the connector in place. Typically, a ~250mm (~10") weld attaching the connector to the sheet pile to the top is sufficient.
- Drive/extract the sheet pile (with the connector attached) as you would normally.
